product Introduction
4018Y telescopic handler is a new product launched by our company in 2024. With a rated load capacity of 4 tons and a maximum lifting height of 17.5 meters, it is an upgraded product based on the 3007J telescopic handler. The larger load and lifting height can easily cope with the customer's high altitude working demand, the telescopic boom setup makes the machine able to cross the obstacles to pick up the goods, the A-shaped outrigger support is more stable, stronger safety, and effective protection of the operator's safety.
Advantage
①4018Y is four-wheel drive,four-wheel steering. Hydraulic brake form of braking, braking force is large, braking lag time is short, safety is more secure.
②Weichai, Yuchai, Cummins engines are optional, providing strong and reliable power for the products. It can be equipped with hydrodynamic transmission or hydrostatic transmission, and can be equipped with Danfoss or Rexroth hydraulic system.
③Provide customers with a variety of auxiliary equipment options, including buckets, aerial work platforms, grapples, etc.

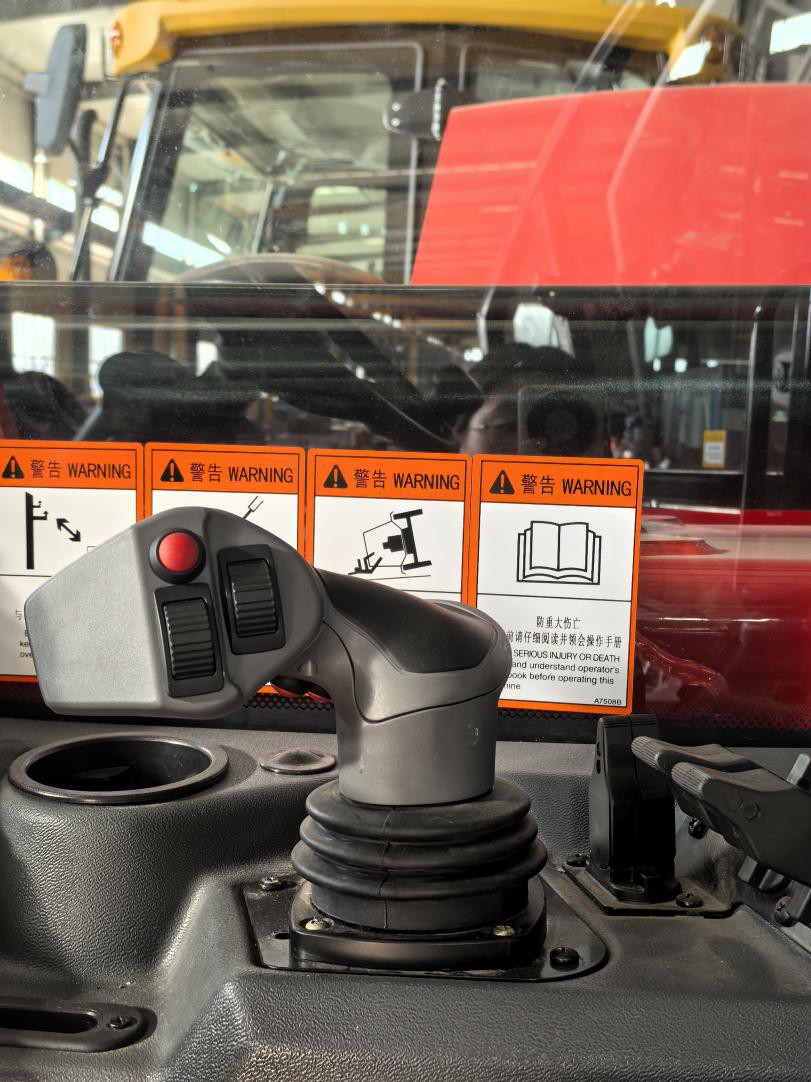

④One-handed control joystick, hydraulic quick-change system, simple and convenient operation, more adaptable to the operator's different operating habits.
Main Specifications
|
1 |
Length of fork tines |
1220mm |
|
|
2 |
Rated load |
4000 kg |
|
|
3 |
Boom lifting time (no load/full load) |
14.4/18.9s |
|
|
4 |
Boom lowering time (no load/full load) |
16.9/19.8s |
|
|
5 |
Telescopic boom extend/retract time |
20.4s/18.8s |
|
|
6 |
Retracted bucket time |
7s |
|
|
7 |
Speed |
FⅠ/RⅠ |
10km/h |
|
FⅠ/RⅠ |
30km/h |
||
|
8 |
Min.Turning Radius Outside of Bucket |
5500±50mm |
|
|
9 |
Length (Fork tines flat on the ground) |
7500±50mm |
|
|
10 |
Width (Bucket width) |
2420±10mm |
|
|
11 |
Height (top of cab) |
2810±20mm |
|
|
12 |
Wheelbase |
3300±10mm |
|
|
13 |
Wheel tread |
1980±10mm |
|
|
14 |
Min.Ground clearance |
440mm |
|
|
15 |
Max.lifting height |
17500±50mm |
|
|
16 |
Operating weight |
13000Kg |
|
|
Engine |
|||
|
1 |
Model |
QSF3.8-C140 |
|
|
2 |
Rated power/Speed |
104KW /2200r/min |
|
|
3 |
Displacement |
3.8 L |
|
|
4 |
Fuel consumption In calibration conditions |
230g/kw·h |
|
|
Transmission system |
|||
|
1 |
Gearbox |
Model |
CA587914S |
|
Type |
Hydrostatic |
||
|
2 |
Axle |
Model |
Front Axle/CA599663S Rear Axle/CA599664S |
|
Type |
Wet brake |
||
|
Total Deceleration Ratio |
20.14 |
||
|
Axle load |
25000kg/25000kg |
||
|
Braking torque |
25120 N.m |
||
|
3 |
Tire |
Tire Model |
440/80-24 |
|
Tire Type |
Pneumatic tire |
||
|
Brake system |
|||
|
1 |
Traveling Brake |
Type |
Wet brake |
|
Braking pressure |
4.4Mpa |
||
|
2 |
Parking brake |
Type |
Spring brake hydraulic release |
|
Steering system |
|||
|
1 |
Type |
Fully hydraulic steering |
|
|
2 |
Working pump |
RB02849089 |
|
|
3 |
Displacement |
63ml/r |
|
|
4 |
System pressure |
20 MPa |
|
|
5 |
Steering angle |
28° |
|
